AXIS#.SAFEPARAM.SLS_#.TIMEDELAYDECMONITORING
Description
Indicates the delay before starting the deceleration monitoring. The delay starts elapsing when Safely Limited Speed (SLS) is activated. When it finally elapses, the monitoring is started. This parameter can only be used when the deceleration monitoring is enabled in the safety parameters (see AXIS#.SAFEPARAM.SLS_#.DECMONITOREN).

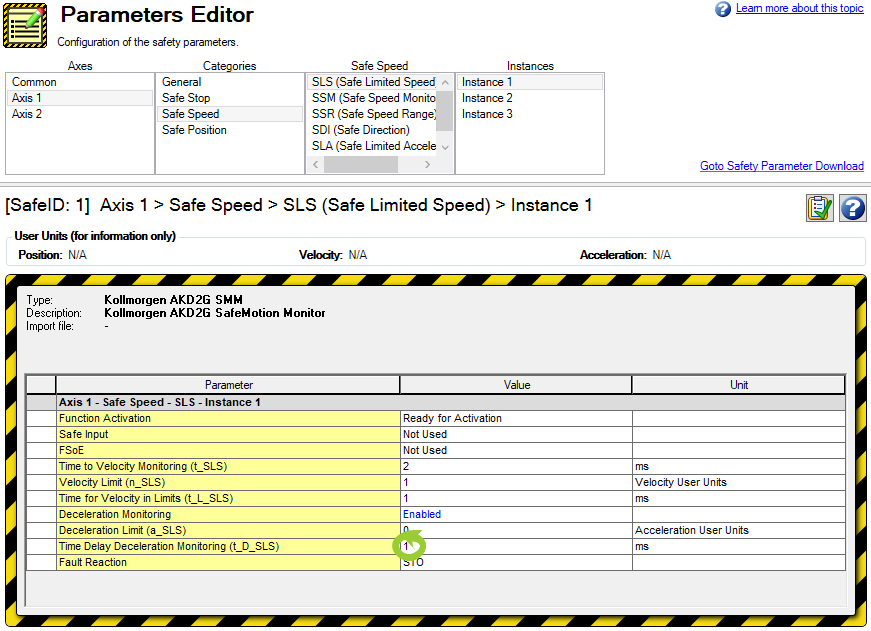

This value is t_D_SLS in the following diagram:
Context
For complete SLS information refer to SLS (Safely Limited Speed).
Related safety parameters:
- AXIS#.SAFE.SLS_#.INTERNALSTATE
- AXIS#.SAFEPARAM.SLS_#.DECLIMIT
- AXIS#.SAFEPARAM.SLS_#.DECMONITOREN
- AXIS#.SAFEPARAM.SLS_#.FAULTREACTION
- AXIS#.SAFEPARAM.SLS_#.FUNCTIONACTIVATION
- AXIS#.SAFEPARAM.SLS_#.FSOE
- AXIS#.SAFEPARAM.SLS_#.TIMEFORVELINLIMITS
- AXIS#.SAFEPARAM.SLS_#.TIMETOVELMONITORING
- AXIS#.SAFEPARAM.SLS_#.VELLIMIT
Versions
Action |
Version |
Notes |
---|---|---|
Implemented |
2-04-00-000 |
Implemented in SMM revision v0.56 |
General Information
Type |
Read/Write |
Units |
Milliseconds |
Range |
[1, 60000] |
Default Value |
1 |
Data Type |
Integer |
Stored in Non-Volatile Memory |
No |
Fieldbus Information
Command |
Index |
SubIndex |
Data Type |
Units |
Float Scale |
Access |
PDO Mappable |
---|---|---|---|---|---|---|---|
AXIS1.SAFEPARAM.SLS_1.TIMEDELAYDECMONITORING |
315ch |
05h |
Unsigned16 |
- |
- |
Read/Write |
No |
AXIS1.SAFEPARAM.SLS_2.TIMEDELAYDECMONITORING |
315dh |
05h |
Unsigned16 |
- |
- |
Read/Write |
No |
AXIS1.SAFEPARAM.SLS_3.TIMEDELAYDECMONITORING |
315eh |
05h |
Unsigned16 |
- |
- |
Read/Write |
No |
AXIS2.SAFEPARAM.SLS_1.TIMEDELAYDECMONITORING |
325ch |
05h |
Unsigned16 |
- |
- |
Read/Write |
No |
AXIS2.SAFEPARAM.SLS_2.TIMEDELAYDECMONITORING |
325dh |
05h |
Unsigned16 |
- |
- |
Read/Write |
No |
AXIS2.SAFEPARAM.SLS_3.TIMEDELAYDECMONITORING |
325eh |
05h |
Unsigned16 |
- |
- |
Read/Write |
No |
